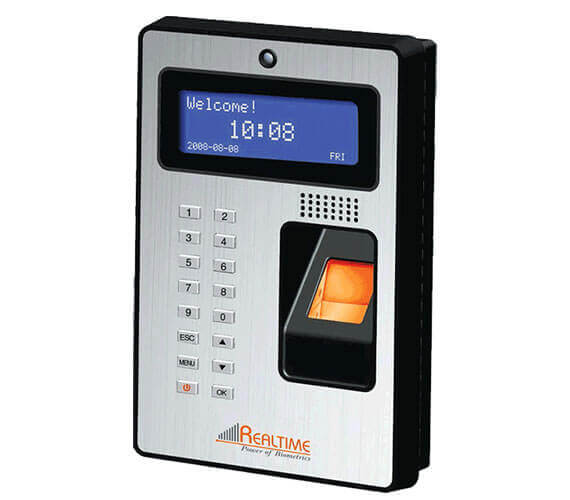

Realtime T12N Access
Product Specifications
| Fingerprint Users: | 2,000 |
| Card User : | 2,000 |
| Password User: | 2,000 |
| Attendance Records: | 100,000 |
| CPU : | 32bit CPU |
| Fingerprint sensor: | Optical sensor |
| Fingerprint spoof detection: | Support |
| Multi-device Related: | Max. 255units |
| Card reader: | Including EM type ID card reader(Option:Mifare reader) |
| Display: | Monochrome screen 122*32 |
| LED : | Three(Red, Green, Blue) |
| Keyboard: | Touch keypad ,16Keys(with doorbell touch keypad) |
| Communication : | TCP/IP,USB, RS485 |
| Input and output terminals : | Power input (12V; GND) Wiegand input 26/34 Door relay terminal (COM; NO; NC) Alarm relay terminal (COM; NO; NC) Wiegand output 26/34 Exit button input (Exit; GND) Door sensor input Bell terminal (BELL)Anti-pass/reader communication terminal (RS485) |
| USB disk : | Support |
| Additional function: | Tamper Detection |
| Audio output : | Buzzer |
| RTC : | Support |
| Working voltage: | DC 12V±10% |
| Working humidity(RH): | 20% - 80% |
| Identification mode: | Fingerprint, card, password and combinations |
| Display language: | Support multi-languages. English, Turkish, Thai, as default |
| Control multi-doors: | Support |
| Power management: | Support sleep mode |
| Working temperature : | -10° C~+60° C |
| Module operating : | mode Stand-alone/Master mode, Reader Mode |
| Access control : | Directly control of door lock / Indirectly control of door lock via Wiegand access Controller. Support 50 access time zones, combination identification, anti-pass back. |
| Alarm function: | Support tamper, long time door open, illegal door open and intimidate alarm |
| Self-test function : | Support |
| FAR/ FRR : | 0.00001/ 0.1(% |
| Fingerprint input angle: | 360°(any angle) |
| Intelligent adaptation function: | Support |
| Matching mode Support : | 1:N, 1:1 |
| Identify speed : | ≤1.0 second (when enrolled 2000 fingerprints) |

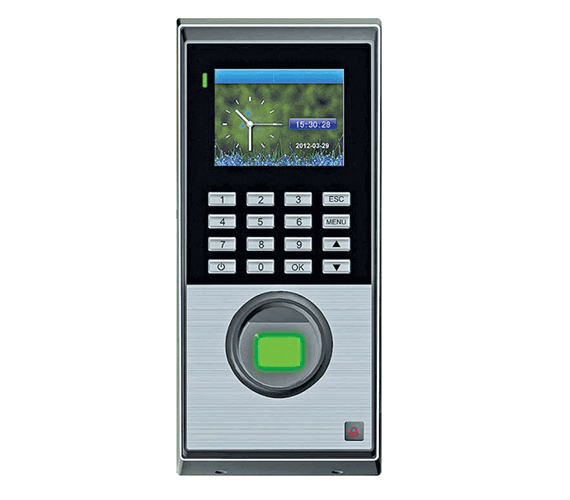

Realtime T13
Product Specifications
| Display: | 2.8 TFT True Color LCD 320 x 240 Pixels |
| CPU: | 32bit CPU |
| Fingerprint Users: | 2,000 |
| Card User: | 2,000 |
| Password User: | 2,000 |
| Attendance Records: | 100,000 |
| Fingerprint Sensor: | Optical Sensor |
| USB Disk: | yes |
| RF card support(optional): | ID card, MIFARE card(wiegand interface) |
| LCD: | 2.8 inch TFT LCD Color 320*240 |
| LED: | 2(red,green) |
| Communication interface: | USB/RS485(option) /TCPIP(10/100Mbps,option) |
| Output ports: | Wiegand26 output two Relay outputs(lock,alarm) |
| Input ports: | Wiegand26/34 input (can be used for finger reader and card reader)Door sensor input(option) Tamper detect(option)Exit button(option) |
| Voice output: | Yes |
| RTC: | Yes |
| Operating Voltage: | DC 9V |
| Humidity: | 20% ~ 80% |
| Temperature: | -10°C to+60°C |
| Language: | English |
| Identify mode: | FP, RF Card, Password and its combinations(5 kinds in all):Card + Fingerprint, ID Number + Fingerprint, Card only, PIN only, Card+ PIN |
| Access Control(optional): | Define Access Time zone, Set User Time zone, Lock Release Time, Anti-passback, Duress alarm Wiegand 34 |
| Job code: | Yes |
| Bell: | Yes |
| Power Management: | Auto power off, Sleep |
| USB disk up/download (enroll data, log): | Yes |
| Self test: | Yes |
| Attendance log search: | Yes(User can search for his/her log data by means of identification) |
| DHCP: | Yes |
| Real-time event sending (online function): | Send events to sever with UDP, RS485 communication |
| FAR/ FRR: | 0.00001/ 0.1(%) |
| Matching speed: | Less than 0.8 s (In case of 2000 fingerprints enrollment) |
| Allowable finger rotation: | 360(all direction) |
| Intelligent adaptation function: | Yes |
| FP identification mode: | 1:N,1:1 |

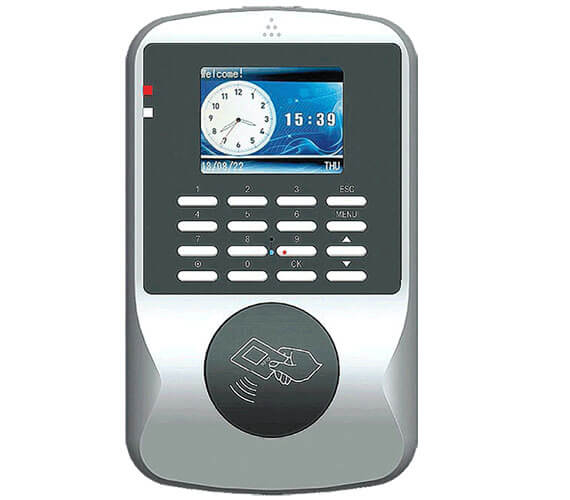

Realtime T600
| Card User : | 10,000 |
| Password User : | 10,000 |
| Attendance Records : | 100,000 |
| CPU : | 32bit CPU |
| Multi-device Related : | Max. 255units |
| Card reader : | Including EM type ID card reader(Option:Mifare reader) |
| Display: | 3 inches (Color Display) |
| LED : | Three(Red, Green, Blue) |
| Keyboard : | Touch keypad, 16Keys(with doorbell touch keypad) |
| Communication : | TCP/IP,USB, RS485 |
| Input and output terminals : | Power input (12V; GND) Wiegand input 26/34 Door relay terminal (COM; NO; NC) Alarm relay terminal (COM; NO; NC) Wiegand output 26/34 Exit button input (Exit; GND) Door sensor input Bell terminal (BELL) Anti-pass/reader communication terminal (RS485 |
| USB disk : | Support |
| Additional function : | Tamper Detection |
| Audio output : | Buzzer |
| RTC : | Support |
| Working voltage : | DC 12V±10% |
| Working humidity (RH) : | 20 % - 80 % |
| Working temperature : | -10°C ~ +60°C |
| Module operating mode : | Stand-alone/Master mode, Reader Mode |
| Identification mode : | Fingerprint, card, password and combinations |
| Display language : | Support multi-languages. English,Turkish, Thai, as default |
| Access control : | Directly control of door lock / Indirectly control of door lock via Wiegand access controller. Support 50 access time zones, combination identification, anti-pass back |
| Control multi-doors : | Support |
| Alarm function : | Support tamper, long time door open, illegal door open and intimidate alarm |
| Power management : | Support sleep mode |
| Self-test function : | Support |
| FAR/ FRR : | 0.00001/ 0.1(%) |
| Identify speed : | >1.0 second (when enrolled 2000 fingerprints) |
| Fingerprint input angle : | 360 (any angle) |
| Intelligent adaptation function : | Support |
| Matching mode : | Support 1:N, 1:1 |

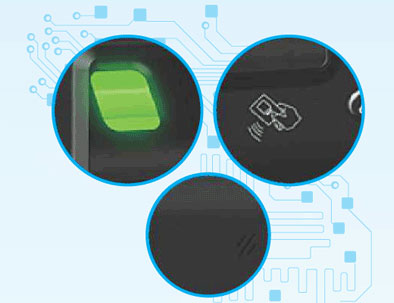

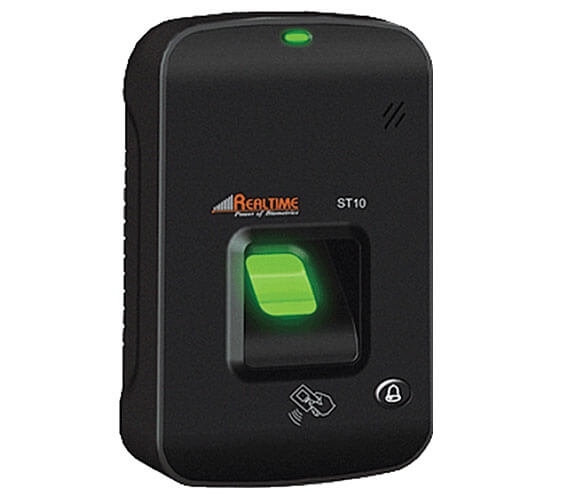

Realtime - ST 10
| Device Support: | T12/T12n/T13 |
| Working: | Working with Master Machine |
| Power supply : | DC 12V |
| Identification style: | Fingerprint/card/password |
| Identification speed: | <1sec |
| FAR : | <0.01 |
| FRR: | <0.0001 |
| Fingerprint capacity : | As per master device |
| Card capacity: | As per master device |
| Communication : | RS485 |
| Temperature : | 0°c---45°c |
| Humidity : | 20%---60% |
| Voice: | Boom, Dual LED |

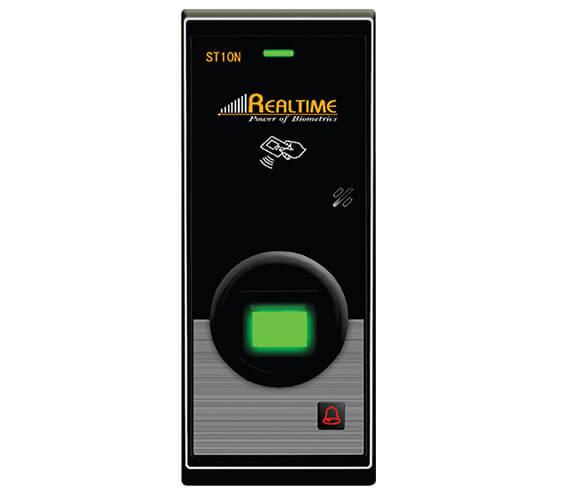

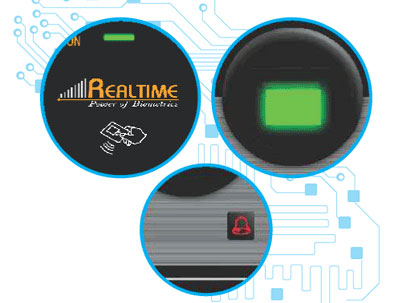

Realtime - ST 10N
| Device Support: | T12/T12n/T13 |
| Working: | Working with Master Machine |
| Power supply : | DC 12V |
| Identification style: | Fingerprint/card/password |
| Identification speed: | <1sec |
| FAR : | <0.01 |
| FRR: | <0.0001 |
| Fingerprint capacity : | As per master device |
| Card capacity: | As per master device |
| Communication : | RS485 |
| Temperature : | 0°c---45°c |
| Humidity : | 20%---60% |
| Voice: | Boom, Dual LED |

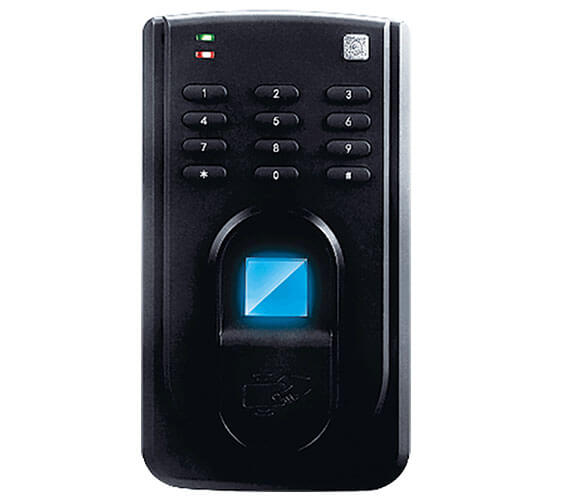

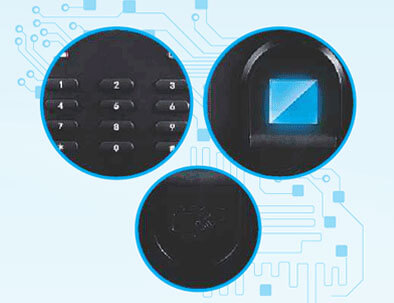

Realtime - ST 20
| Device Support: | T16/T61/T28/T62 |
| Working: | Working with Master Machine |
| Power supply : | DC 12V |
| Identification style: | Fingerprint/card/password |
| Identification speed: | <1sec |
| FAR : | <0.01 |
| FRR: | <0.0001 |
| Fingerprint capacity : | As per master device |
| Card capacity: | As per master device |
| Communication : | RS485 |
| Temperature : | 0°c---45°c |
| Humidity : | 20%---60% |
| Voice: | Boom, Dual LED |

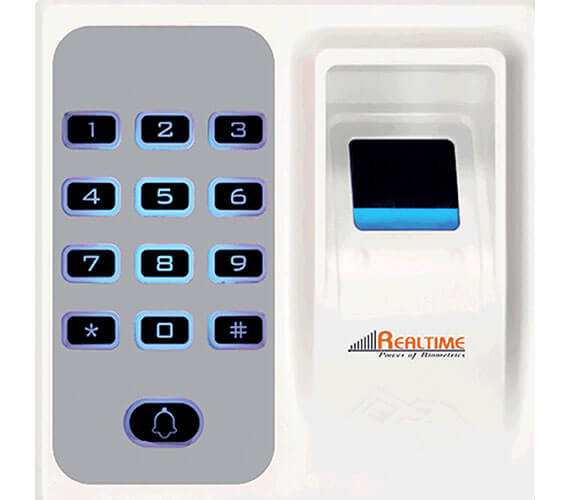

Realtime - ST 25
| Device Support: | T16/T61/T28/T62 |
| Working: | Working with Master Machine |
| Power supply : | DC 12V |
| Identification style : | Fingerprint/card/password |
| Identification speed : | <1sec |
| FAR : | <0.01 |
| FRR: | <0.0001 |
| Fingerprint capacity : | As per master device |
| Card capacity: | As per master device |
| Communication : | RS485 |
| Temperature : | 0°c---45°c |
| Humidity : | 20%---60% |
| Voice: | Boom, Dual LED |

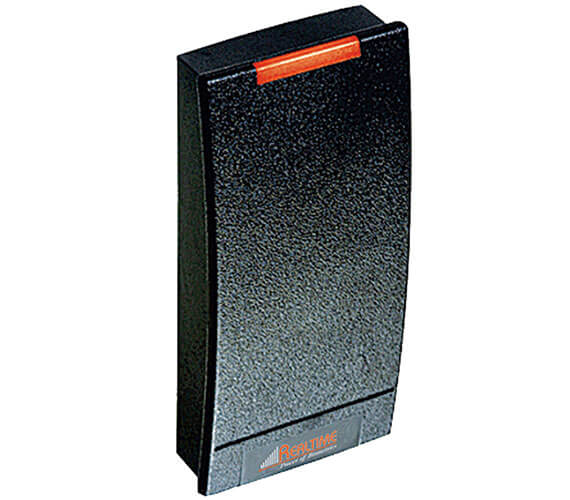

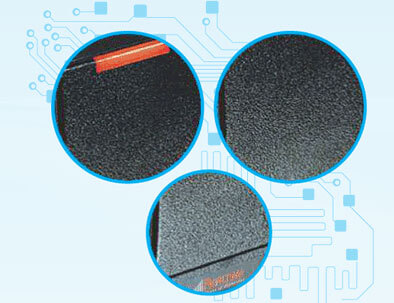

Realtime - RF 10
| »Wiegand 26bits / Wiegand34bits / ABA Standard Format Data Output: |
| »Less than 0.2 second Response Speed: |
| »Less than 0.5 seconds Proximity Time Distance: |
| »2-15cm Proximity Range: |
| »Support UEM 4100 ID Card or compatible with it( 64bits, Manchester Code): |
| » -25 C to 75 C Ambient Temperature,10%-90% Ambient Humidity: |
| »Built-in Antenna: |
| »Built-in LED (Double Color LED): |
| »Built-in Loud Speaker (Buzzer): |
| »DC 12V Working Voltage,70mA Working Current: |
| »100 Meters Communication Distance: |
| »Real Time Data Transfer: |
Realtime - RF 10M
| »Wiegand 26bits / Wiegand34bits / ABA Standard Format Data Output: |
| »Less than 0.2 second Response Speed: |
| »Less than 0.5 seconds Proximity Time Distance: |
| »2-15cm Proximity Range: |
| »Support 13.5MHz Mifare ID Card or compatible with it( 64bits, ManchesterCode): |
| » -25 C to 75 C Ambient Temperature,10%-90% Ambient Humidity: |
| »Built-in Antenna: |
| »Built-in LED (Double Color LED): |
| »Built-in Loud Speaker (Buzzer): |
| »DC 12V Working Voltage,70mA Working Current: |
| »100 Meters Communication Distance: |
| »Real Time Data Transfer: |
UHF Reader 5 Meter Range
| Protocol : | ISO18000-6B, ISO18000-6C (EPC GEN2) |
| Frequency Range : | Standard ISM 902~928MHz or ISM 865~868MHz,other frequency available |
| Operation Mode : | FHSS or fixed frequency(set by software) |
| RF Power : | 0~30dBm,software adjustable |
| Reading Speed: | Software Programmable, Average Reading per 64Bits:<6ms |
| Reading Mode: | Timing or Touch, Software Programmable |
| Data Ports : | Standard: Wiegand26/34, RS485, RS232; Software Programmable Optional: WIFI, RJ45 |
| Data Input : | Port Trigger input one team |
| Reading Range : | Max 3 m-5M |
| Reading Clue : | Buzzer |
| Antenna : | Built-in line polarization Antenna, Gain:12dbi |
| Power Supply : | DC+12V (Power Adapter) |
| Dimension : | 440mm X 440mm X 50mm |
| Weight: | 2.5Kg |
| Operation Temperature : | -20 C ~ +80 C |

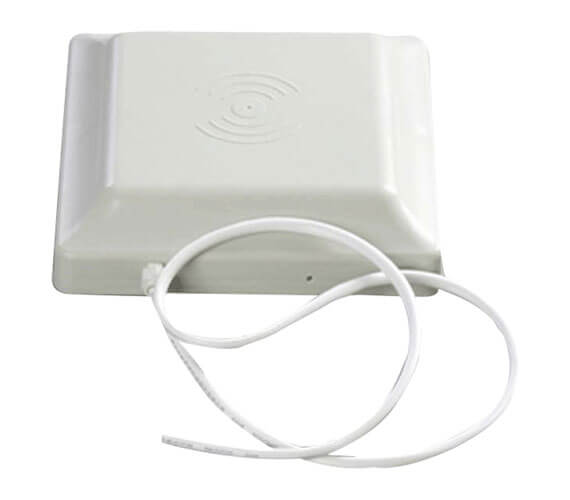

UHF Reader 15 Meter Range
| Protocol : | ISO18000-6B, ISO18000-6C (EPC GEN2) |
| Frequency Range : | Standard ISM 902~928MHz or ISM 865~868MHz,other frequency available |
| Operation Mode : | FHSS or fixed frequency(set by software) |
| RF Power : | 0~30dBm,software adjustable |
| Reading Speed: | Software Programmable, Average Reading per 64Bits:<6ms |
| Reading Mode: | Timing or Touch, Software Programmable |
| Data Ports : | Standard: Wiegand26/34, RS485, RS232; Software Programmable Optional: WIFI, RJ45 |
| Data Input : | Port Trigger input one team |
| Reading Range : | Max 10M-15M |
| Reading Clue : | Buzzer |
| Antenna : | Built-in line polarization Antenna, Gain:12dbi |
| Power Supply : | DC+12V (Power Adapter) |
| Dimension : | 440mm X 440mm X 50mm |
| Weight: | 4.5Kg |
| Operation Temperature : | -20 C ~ +80 C |

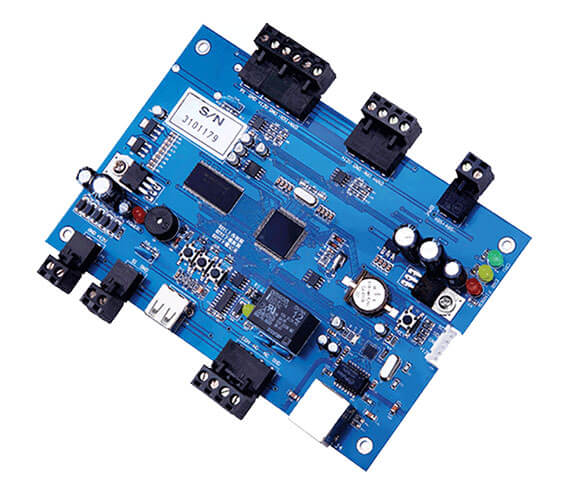

2 Fingerprint Reader Connectivity
| Power : | 12V >100mA |
| Device Size : | 160*130mm |
| Communication: | TCP/IP |
| Fingerprint : | 3,000 |
| Card : | 3,000 |
| Doors : | 1 |
| Reader : | 2 |
| Exit: | 1 |
| Wiegand : | Sole Factory deal |
| Distance : | 100 meters |
| Temperature : | 10° C~90°C; |
| Humidity : | 40%---70% |
| Alarm: | Defend , Unlock and Threaten |
| Database : | Access and SQL |

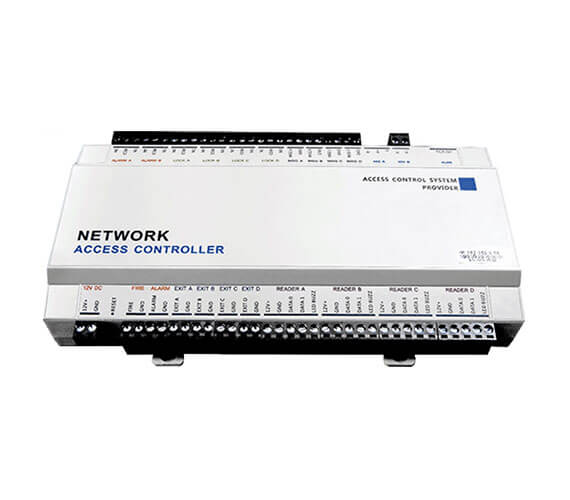

Realtime T2D » 4 Door Access Controllerr
| Working Mode: | Offline / Online |
| Verification: | ID Card, Password |
| Combination: | PIN+Card, PIN, Card |
| Card Capacity (pcs): | 30,000 |
| Attendance Record : | 2,00,000 |
| Controller to Reader Distance : | 80-100m |
| Door Control : | 4Door |
| Communication : | TCP / IP |
| RFID Reader: | Support HID, CPU, Motorola Brand Reader |
| Reader Format : | WG26/34 |
| Working Humidity : | 10%~90% |
| Working Temperature : | -40° C~70° |
| Power Supply : | 12V DC, Idle Current: 4A, 48 att |
| Database : | Access / SQL |
| Sound Indicator : | Buzzer |
| Dimension : | 218 x 106 (mm) |
Realtime T4D » 4 Door Access Controller
| Working Mode: | Offline / Online |
| Verification: | ID Card, Password |
| Combination: | PIN+Card, PIN, Card |
| Card Capacity (pcs): | 30,000 |
| Attendance Record : | 2,00,000 |
| Controller to Reader Distance : | 80-100m |
| Door Control : | 4Door |
| Communication : | TCP / IP |
| RFID Reader: | Support HID, CPU, Motorola Brand Reader |
| Reader Format : | WG26/34 |
| Working Humidity : | 10%~90% |
| Working Temperature : | -40° C~70°C; |
| Power Supply : | 12V DC, Idle Current: 4A, 48 att |
| Database : | Access / SQL |
| Sound Indicator : | Buzzer |
| Dimension : | 218 x 106 (mm) |
T2DF » 4 Fingerprint Reader Connectivity
| Power : | 12V >100mA |
| Device Size : | 160*130mm |
| Communication: | TCP/IP |
| Fingerprint : | 3,000 |
| Card : | 3,000 |
| Doors : | 2 |
| Reader : | 4 |
| Exit: | 2 |
| Wiegand : | Sole Factory deal |
| Distance : | 100 meters |
| Temperature : | 10° C~90°C; |
| Humidity : | 40%---70% |
| Alarm: | Defend , Unlock and Threaten |
| Database : | Access and SQL |
T4DF » 8 Fingerprint Reader Connectivity
| Power : | 12V >100mA |
| Device Size : | 220*130mm |
| Communication: | TCP/IP |
| Fingerprint : | 3,000 |
| Card : | 3,000 |
| Doors : | 4 |
| Reader : | 4 |
| Exit: | 4 |
| Wiegand : | Sole Factory deal |
| Distance : | 100 meters |
| Temperature : | 10° C~90°C; |
| Humidity : | 40%---70% |
| Alarm: | Defend , Unlock and Threaten |
| Database : | Access and SQL |
T-123 » Stand Alone Access Control System
| Basic Config: | Built-in Proximity Card Reader and PIN Keyboard (Keyboard for Management, Proximity Card for Opening Door) |
| Card Type: | EM |
| Reading Distance: | >5cm |
| Storage Capacity: | 6399 Card or Password |
| External Card Reader : | No |
| Operating Voltage: | 9V-15V |
| Static Current : | 65mA-70mA |
| Unlock Current : | 85mA-90mA |
| Lock Type: | Relay Output |
| Maximum Output : | 70°c |
| Lowest Output : | -25°c |
| Dimensions : | 86 x 86 x 18 (mm) |
| Reader Connectivity : | RFID (Optional) |
TD1D » Stand Alone Access Control System
| User Capacity: | 1000 | |
| Fingerprint: | 500 | |
| Card: | 500 | |
| PIN: | 500 | |
| Operating Voltage: | 12V DC | |
| Idle Current: | <50 Ma | |
| Active Curren : | <100 Ma | |
| Fingerprint Reader : | Optical fingerprint Module | |
| Resolution: | 500 DPI | |
| Identification time : | <1S | |
| FAR : | < 0.0001% | |
| FRR : | <0.01% | |
| Proximity Card Reader : | Industry Standard 26 bit | |
| Radio Technology : | 125KHz Industry Proximity EM Card | |
| Read Range : | 1 ~ 5 cm | |
| PIN Reader : | 4~ 6 digits PIN | |
| Wiring Connections : | Relay output, exit button, alarm, Wiegand | |
| Communication: | output | |
| Relay : | Door bell | |
| Adjustable Relay Output Time : | USB for downloading/uploading | |
| Lock Output Load : | One (NO, NC, Common) | |
| Alarm Output Load : | 1 ~ 99 Seconds (5 seconds default) | |
| Wiegand Interface: | 2 Amp Maximum | |
| Environment: | 5 Amp Maximum | |
| Operating Temperature : | Wiegand 26 bits output | |
| Operating Humidity : | -20°C~ +50°C | |
| Physical : | 20% RH ~ 90% RH | |
| Dimensions : | ABS Enclosure | |
| Unit Weight : | 8.8L x 8.8W x 3.0H (cm) | |
| Shipping Weight : | 350g | 400g |

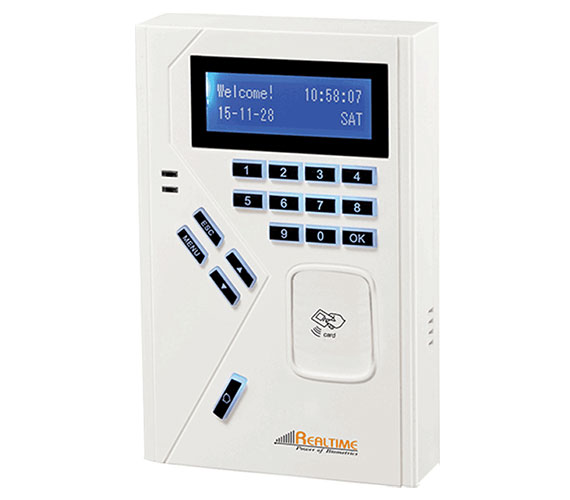

T16C » Realtime RFID Attendance & Access
| Card User : | 10,000 |
| Password User : | 10,000 |
| Attendance Records : | 100,000 |
| CPU : | 32bit CPU |
| Multi-device Related : | Max. 255units |
| Card reader: | Including EM type ID card reader(Option:Mifare reader) |
| Display: | Monochrome screen 122*32 |
| LED : | Three(Red, Green, Blue) |
| Keyboard : | Touch keypad, 16Keys(with doorbell touch keypad) |
| Communication : | TCP/IP,USB, RS485 |
| Input and output terminals : | Power input (12V; GND) Wiegand input 26/34 Door relay terminal (COM; NO; NC) Alarm relay terminal (COM; NO; NC) Wiegand output 26/34 Exit button input (Exit; GND) Door sensor input Bell terminal (BELL) Anti-pass/reader communication terminal (RS485 |
| USB disk : | Support |
| Additional function : | Tamper Detection |
| Audio output : | Buzzer |
| RTC : | Support |
| Working voltage : | DC 12V±10% |
| Working humidity (RH) : | 20 % - 80 % |
| Working temperature : | -10°C~ +60°C |
| Module operating mode : | Stand-alone/Master mode, Reader Mode |
| Identification mode : | Fingerprint, card, password and combinations |
| Display language : | Support multi-languages. English,Turkish, Thai, as default |
| Access control : | Directly control of door lock / Indirectly control of door lock via Wiegand access controller. Support 50 access time zones, combination identification, anti-pass back |
| Control multi-doors : | Support |
| Alarm function : | Support tamper, long time door open, illegal door open and intimidate alarm |
| Power management : | Support sleep mode |
| Self-test function : | Support |
| FAR/ FRR : | 0.00001/ 0.1(%) |
| Identify speed : | >1.0 second (when enrolled 2000 fingerprints) |
| Fingerprint input angle : | 360 (any angle) |
| Intelligent adaptation function : | Support |
| Matching mode : | Support 1:N, 1:1 |

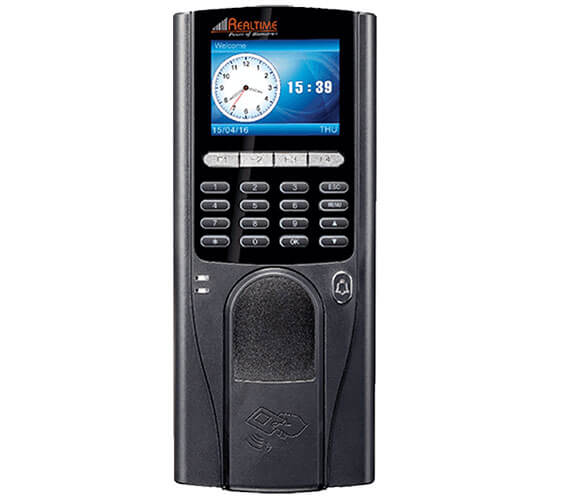

T61C » Sleek Professional Access Control With Bell Connectivity
| Card User : | 10,000 |
| Password User : | 10,000 |
| Attendance Records : | 100,000 |
| CPU : | 32bit CPU |
| Multi-device Related : | Max. 255units |
| Card reader : | Including EM type ID card reader(Option:Mifare reader) |
| Display: | 2.8 inches (Color Display) |
| LED : | Three(Red, Green, Blue) |
| Keyboard : | Touch keypad, 16Keys(with doorbell touch keypad) |
| Communication : | TCP/IP,USB, RS485 |
| Input and output terminals : | Power input (12V; GND) Wiegand input 26/34 Door relay terminal (COM; NO; NC) Alarm relay terminal (COM; NO; NC) Wiegand output 26/34 Exit button input (Exit; GND) Door sensor input Bell terminal (BELL) Anti-pass/reader communication terminal (RS485 |
| USB disk : | Support |
| Additional function : | Tamper Detection |
| Audio output : | Buzzer |
| RTC : | Support |
| Working voltage : | DC 12V±10% |
| Working humidity (RH) : | 20 % - 80 % |
| Working temperature : | -10°C ~ +60°C |
| Module operating mode : | Stand-alone/Master mode, Reader Mode |
| Identification mode : | Fingerprint, card, password and combinations |
| Display language : | Support multi-languages. English,Turkish, Thai, as default |
| Access control : | Directly control of door lock / Indirectly control of door lock via Wiegand access controller. Support 50 access time zones, combination identification, anti-pass back |
| Control multi-doors : | Support |
| Alarm function : | Support tamper, long time door open, illegal door open and intimidate alarm |
| Power management : | Support sleep mode |
| Self-test function : | Support |
| FAR/ FRR : | 0.00001/ 0.1(%) |
| Identify speed : | >1.0 second (when enrolled 2000 fingerprints) |
| Fingerprint input angle : | 360 (any angle) |
| Intelligent adaptation function : | Support |
| Matching mode : | Support 1:N, 1:1 |

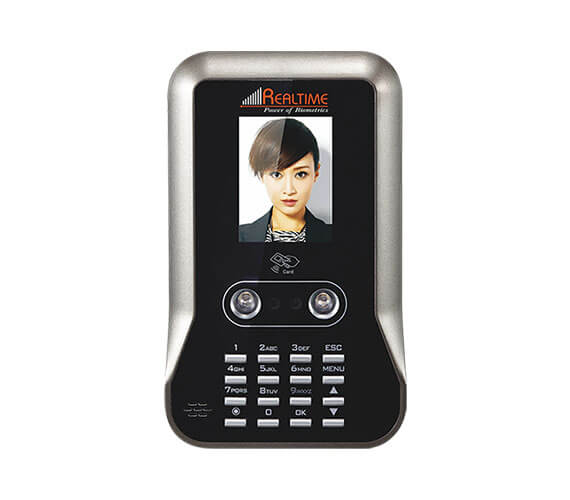

T3500F » RealtimeT3500F
| Max. user: | 10,000 |
| Face Template capacity: | 1,000 |
| log Capacity: | 200,000 |
| Password Capacity: | 1,000 |
| Card Capacity: | 10,000 |
| RF Card Option: | 125kHz EM / 13.56MHz Mifare |
| CPU: | 1 Ghz |
| Image sensor: | Special Dual Image sensor |
| Communication: | TCP/IP,WAN, USB Host, USB Slave |
| Operational Mode: | online / Off line |
| Wiegand: | Input & Output |
| Authentication Mode: | Face / Fingerprint / Password / Card /ô€€Face+Password/Fingerprint+Password / Card+Password |
| Verification Time: | 1 second [1:N] CPU Samsung 2440, 400MHz |
| LCD Dispay: | 2.8" TFT color screen 320x240 pixel |
| Interface: | TCP/IP, USB host, USB slave, Wiegand 26-bit output, 1x Relay |
| Voice Instruction: | 16-bit Hi-Fi voice & Sound Indication |
| Language: | English |
| Power Source: | 12VDC / 2A |
| External Backup Battery: | Optional |
| Operating Temperature: | 0°c - 40°c |
| Operating Humidity: | 20% - 80%RH |
| Dimensions(mm): | 199 x 118 x 97 mm |
| Weight: | 0.55 g |

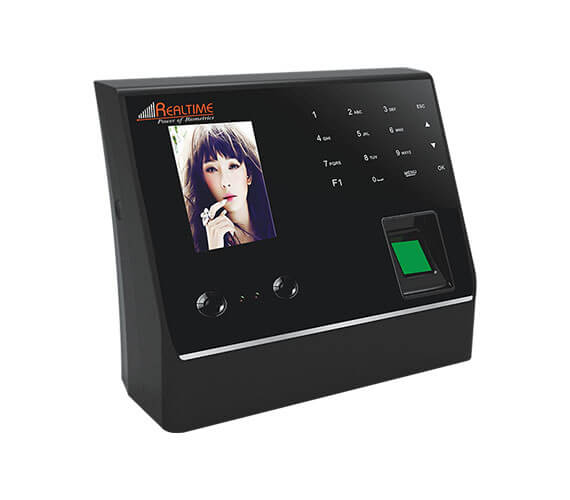

T3000F » RealtimeT3000F
| User Registration Capacity: | 3000(Optional 5000, 10000, 50000) |
| Face registration Capacity: | 3000 |
| User Record/Management Record: | 500,000/50,000 |
| Authentication Method: | Face,Fingerprint, Card, Password, Four ways |
| Language: | English |
| Algorithm Version: | Facev4.1 |
| FAR/FRR: | 0.01%/1% |
| Matching Speed: | 1.0 second |
| Smart Update Function: | Yes |
| Face Recognition Mode: | Support 1:N or 1:1 |
| Access Control Function: | Essential opening door function, optional control gate/Time management/Anti-submarine/Duress alarm function |
| Attendance Function: | Attendance(on/off duty) time quantum |
| Alarm Function: | Yes |
| Power Managemnet Function: | Sleeping Function |
| U disk Download/Upload Function: | Yes |
| Dynamic IP A llocation: | Yes |
| Camera: | Two high definition camera |
| Infrared Lamp: | Two imported ultra bright lamp |
| Unch Card Function: | Yes(optional M1 card or ID card) |
| Displayer: | Color screen2.8inch TFT |
| Keyboard Function: | 16 |
| Body Induction: | Yes |
| LED Lights: | Two(Red, Green) |
| Professional access control Function: | Yes |
| Communication Mode: | TCP-IP, WIFI(optional), RS485 |
| U Disk Interface: | Yes(Remark: only support FAT32 file system) |
| Voice Output: | Yes |
| Operating System: | LINUX VER3.6.5 |
| Size: | L174 X W87 X H142MM |

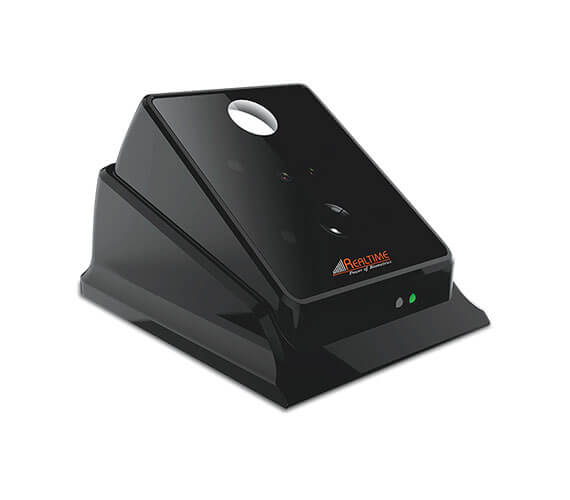

T1UF » RealtimeT1UF
| Registered Face Capacity: | 500(Extensible 1000-10,000) |
| Recognition Speed: | 1.0 second (500 face) |
| Recognition Distance: | 30-80cm |
| Light Source: | High Power Infrared Lamp(two) |
| Camera: | High Definition Double Camera |
| Usage Mode: | On the table/Movement |
| Interface Mode: | USB2.0 or RS-232(choose) |
| Operating System: | Window/Linux/Android/IOS |
| Working Voltage: | 5V |

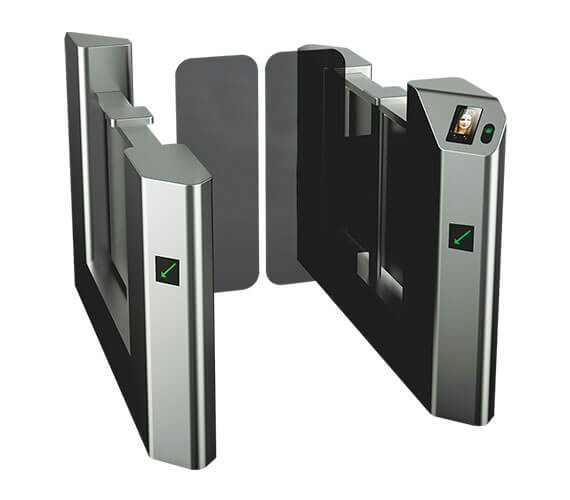

T6501 » RealtimeT6501
| Structure: | 304 stainless steel panel punching forming |
| Dimension of appearance: | 1800x220x1160 (mm) |
| Material: | 304 stainless steel/spraying plastics |
| Passage width: | Standalone less than 400 MM |
| Access mode: | Single/ bi-direction |
| Recognition mode: | Face/ Fingerprint/ IC card / ID card |
| Capacity of face register: | 3000 |
| Capacity of fingerprint register: | 5000 (range from 5000 to 100,000 pieces) |
| Camera: | Two high definition cameras |
| Infrared light: | Two exported super bright infrared light |
| Display: | 4.3 inch high definition TFT capacitance touchable bright color screen |
| Communication interface: | RS485, TCP/IP, P2P, Web |
| Mode of access control: | Professional pattern, wiegand and output, anti - sneak, anti-trailing |
| Input interface: | Switching signal (COM interface is ground) |
| Drive Motor: | Continuous current motor 30W/24V |
| Operation time of swing door: | About 2s. |
| Working environment: | Indoor and outdoor (canopy is better) |
| Power: | AC 220V / AC 110 V (optional) |
| Temperature of working environment: | -15°C - 75°C |
| Relative humidity: | Less than 95%, non-condenation. |

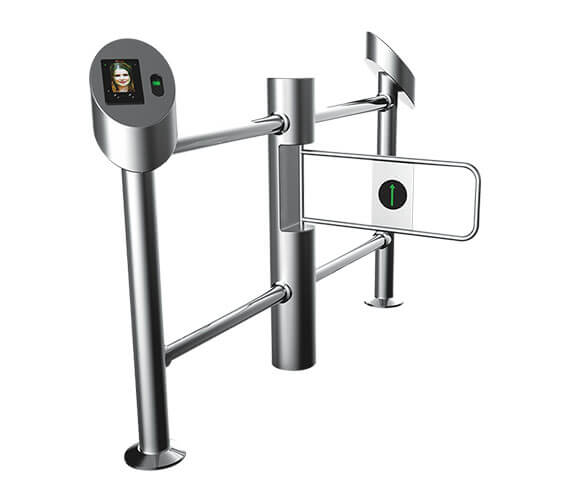

T6701 » RealtimeT6701
| Structure: | 304 stainless steel panel punching forming |
| Dimension of appearance: | 1800x180x1190 (mm) |
| Material: | 304 stainless steel/spraying plastics |
| Passage width: | Standalone less than 600mm |
| Access mode: | Single/ bi-direction |
| Recognition mode: | Face/ Fingerprint/ IC card / ID card |
| Capacity of face register: | 3000 |
| Capacity of fingerprint register: | 5000 (range from 5000 to 100,000 pieces) |
| Camera: | Two high definition cameras |
| Infrared light: | Two exported super bright infrared light |
| Display: | 4.3 inch high definition TFT capacitance touchable bright color screen |
| Communication interface: | RS485, TCP/IP, P2P, Web |
| Mode of access control: | Professional pattern, wiegand and output, anti - sneak, anti-trailing |
| Input interface: | Switching signal (COM interface is ground) |
| Working environment: | Indoor and outdoor (canopy is better) |
| Power: | AC 220V / AC 110 V (optional) |
| Temperature of working environment: | -15°C - 75°C |
| Relative humidity: | Less than 95%, non-condenation. |
| Drive Motor: | Continuous current motor 30W/24V |
| Operation time of swing door: | About 2s |

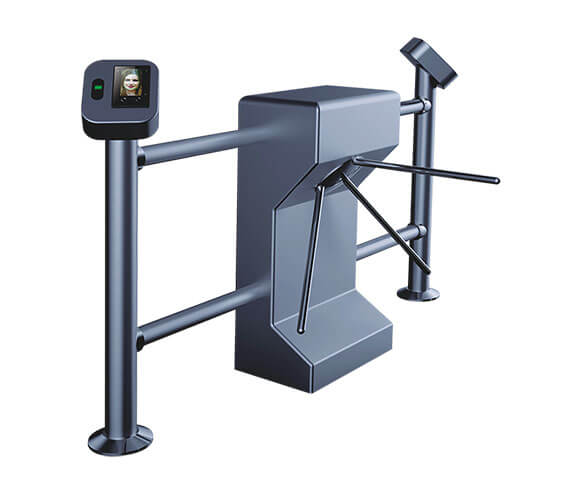

T6201 » RealtimeT6201
| Structure: | 304 stainless steel panel punching forming |
| Dimension of appearance: | Length 1800x width 300x height 1400 (mm) |
| Material: | 304 stainless steel/spraying plastics |
| Passage width: | less than 500 MM |
| Control Mode: | Semi-automatic/ automatic/ manual |
| Access mode: | Single/ bi-direction |
| Recognition mode: | Face/ Fingerprint/ IC card / ID card |
| Capacity of face register: | 3000 |
| Capacity of fingerprint register: | 3000 (range from 5000 to 100,000 pieces) |
| Camera: | Two high definition cameras |
| Infrared light: | Two exported super bright infrared light |
| Display: | 4.3 inch high definition TFT capacitance touchable bright color screen |
| Communication interface: | RS485, TCP/IP, P2P, Web |
| Mode of access control: | Professional pattern, wiegand and output, anti - sneak, anti-trailing |
| Input interface: | Switching signal (COM interface is ground) |
| Access speed: | 30 person/ min |
| Working environment: | Indoor and outdoor (canopy is better) |
| Power: | AC 220V / AC 110 V (optional) |
| Temperature of working environment: | -15°C - 75°C |
| Relative humidity: | Less than 95%, non-condenation. |

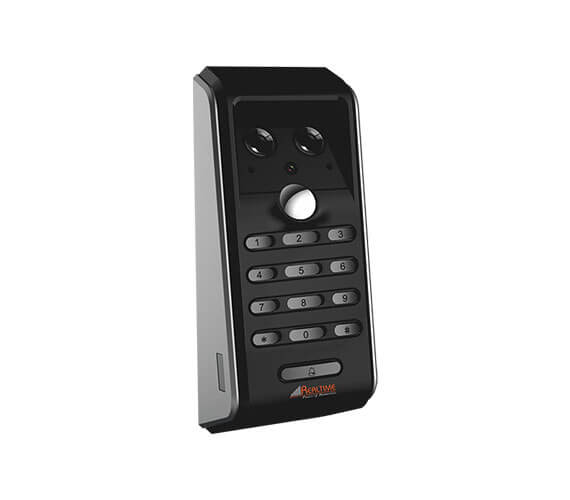

T2DF » Realtime T2DF
| Face Capacity: | 500 |
| User Capacity: | 1000 |
| Verification mode: | Face,Card,Password |
| Access Records: | 300000 |
| Comparison Mode: | Convex Mirror Window Tip |
| Algorithm Version: | Face 4.0 |
| Management Mode: | Upload and Download by U Disk,manage by Excel |
| Working Voltage: | DC12V |
| Recognition Speed: | ≤1 second |
| Language: | English |
| Voice Function: | Whole course voice navigation |
| Doorbell Function: | Yes |
| Access Control Function: | Multi period management Professional access control function Wiegan input and output Duress alarm function Teardown alarm function |
| Size: | L65 x W41x H158MM |

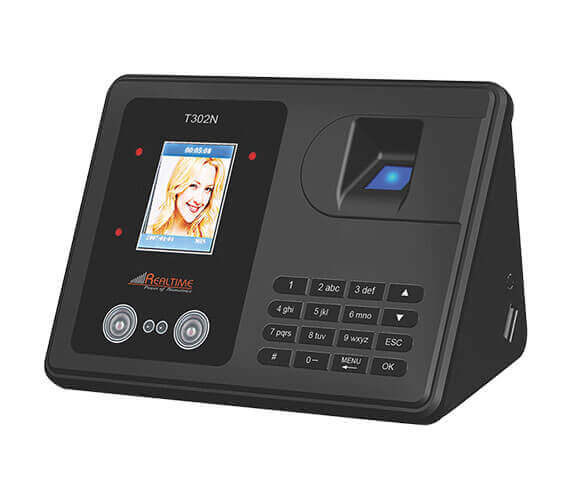

T302N » Face With Finger Attendance System
| Face capacity | 1000 |
| Card capacity | 5000 |
| Fingerprint capacity | 5000 |
| Max Attendance log | 300,000 |
| Management log | 10000 |
| Identify mode | Face, Fingerprint, card, password and combinations |
| Display language | English |
| LED | 1 (Red-Green dual color) |
| Wiegand input | Inside and outside Wiegand(26/34) |
| Communication | TCP/IP, WIFI (optional) |
| U-disk | Supported |
| Battery | 3 Hours Battery Backup ( Optional) |
| Working voltage | DC12V � 5%(current : below 1.5A) |
| Working temperature | -100c~ +600c |
| Working humidity | (RH) 20% ~ 80% |
| Self-test function | Supported |
| Power management | Sleep Mode |
| FAR/ FRR | 0.001/1(%) |
| Identify speed | ?1.0 seconds |
| Intelligent adaptation function | Built in |
| Matching mode | Supports 1:N |
| FAR/ FRR | 0.00001/0.1(%) |
| Identify speed | ?1.0 second (when enrolled 5000 fingerprints) |
| Fingerprint input angle | 3600(any angle) |
| Intelligent adaptation function | Support |
| Matching mode | Support 1:N |

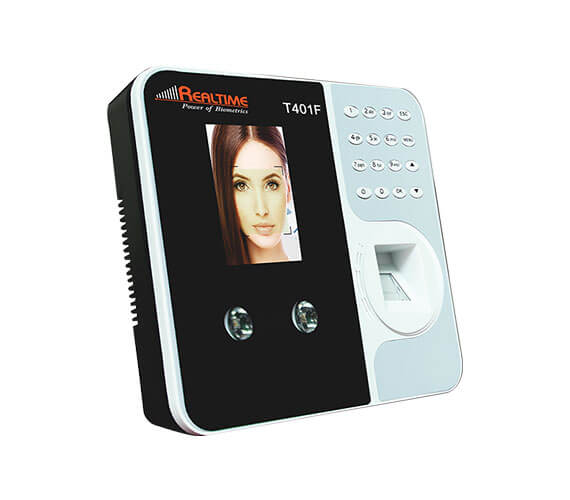

T401F » RealtimeT401F
| Face capacity | 1000 |
| Card capacity | 5000 |
| Fingerprint capacity | 5000 |
| Max Attendance log | 300,000 |
| Management log | 10000 |
| Identify mode | Face, Fingerprint, card, password and combinations |
| Display language | English |
| LED | 1 (Red-Green dual color) |
| Wiegand input | Inside and outside Wiegand(26/34) |
| Communication | TCP/IP, WIFI (optional) |
| U-disk | Supported |
| Battery | 3 Hours Battery Backup ( Optional) |
| Working voltage | DC12V � 5%(current : below 1.5A) |
| Working temperature | -100c~ +600c |
| Working humidity | (RH) 20% ~ 80% |
| Self-test function | Supported |
| Power management | Sleep Mode |
| FAR/ FRR | 0.001/1(%) |
| Identify speed | ?1.0 seconds |
| Intelligent adaptation function | Built in |
| Matching mode | Supports 1:N |
| FAR/ FRR | 0.00001/0.1(%) |
| Identify speed | ?1.0 second (when enrolled 5000 fingerprints) |
| Fingerprint input angle | 3600(any angle) |
| Intelligent adaptation function | Support |
| Matching mode | Support 1:N |

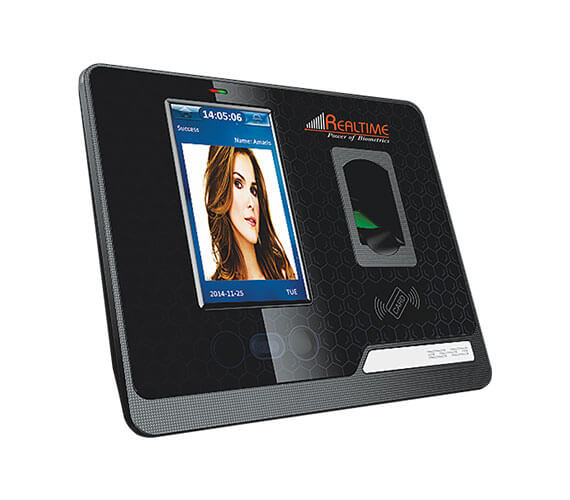

T501F » RealtimeT501F
| Face capacity: | 3000/(20,000 - 1:1) |
| Card capacity: | 10,000 |
| Fingerprint capacity: | 10,000 |
| Max Attendance log: | 300,000 |
| Management log: | 10000 |
| Display: | 4.3 inch Touch LCD |
| Display language: | English |
| LED: | 1 (Red-Green dual color) |
| Communication: | TCP/IP, WiFi(optional), GPRS(Optional) |
| Processer: | A33 Quad Core Processor - 1.3 GHz |
| Memory: | 512 MB Flash,64MB SDRAM |
| Hardware: | Plarform 600 Multi Medium Development |
| U-disk: | Supported |
| Audio output: | Voice Interface |
| battery: | 3 Hours Battery Backup ( Optional) |
| Working voltage: | DC12V � 5%(current : below 1.5A) |
| Working temperature: | -10�c~ +60�c |
| Working humidity(RH): | 20% ~ 80% |
| Search attendance log: | Support (After authentication, user can look his/her attendance logs.) |
| Self-test function: | Supported |
| Power management: | Sleep Mode |
| FAR/ FRR: | 0.001/1(%) |
| Identify speed: | ?1.0 seconds(when enrolled 5000 fingerprints) |
| Fingerprint input angle: | 360�(any angle) |
| Intelligent Adaptation function: | Support |

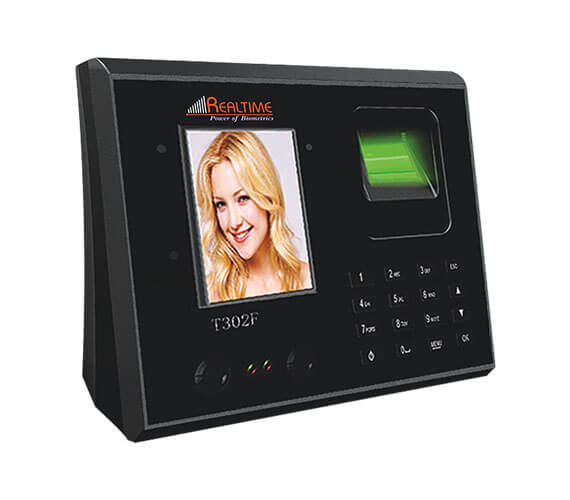

RealtimeT302F
| Face capacity: | 500 |
| Card capacity: | 5000 |
| Fingerprint capacity: | 5000 |
| Max Attendance log: | 300,000 |
| Management log: | 10000 |
| Identify mode: | Face, Fingerprint, card, password and combinations |
| Display language: | English |
| LED: | 1 (Red-Green dual color) |
| Wiegand input: | Inside and Output Wiegand(26/34) |
| Exit button input: | Supported |
| Door sensor input: | Supported |
| Bell relay: | Supported |
| Door relay: | Supported |
| Wiegand output: | Supported |
| Tamper input: | Supported |
| Communication: | TCP-IP,WIFI(Optional) |
| U-disk: | Supported |
| Audio output: | Voice Interface |
| Battery: | 3 Hrs Battery Backup(Optional) |
| Working voltage: | DC12V ± 5%(current : below 1.5A) |
| Working temperature: | -10°c~ +60°c |
| Working humidity(RH): | 20% ~ 80% |
| Search attendance log: | Support (After authentication, user can look his/her attendance logs.) |
| Door Control: | Directly control of door lock/Indirectly control of door lock via wiegand Access Controller. |
| Power management: | Sleep Mode |
| FAR/ FRR: | 0.001/1(%) |
| Identify speed: | ≤1.0 seconds |
| Intelligent adaptation function: | Built-In |
| Matching mode: | Supports 1:N |
| Fingerprint input angle: | 360°(any angle) |
| FAR/ FRR: | 0.00001/0.1(%) |

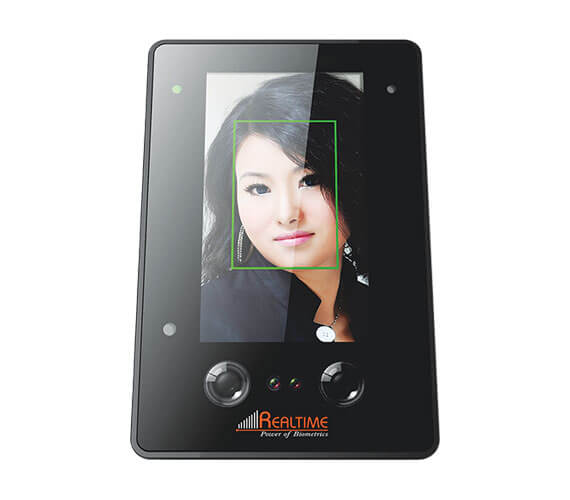

T500F
| User Registration Capacity: | 3000 |
| Face registration Capacity: | 3000 |
| User Record/Management Record: | 500,000/50,000 |
| Authentication Method: | Face, Card, Password, Four ways |
| Language: | English |
| Algorithm Version: | Facev4.1 |
| FAR/FRR: | 0.01%/1% |
| Matching Speed: | 1.0 second |
| Smart Update Function: | Yes |
| Face Recognition Mode: | Support 1:N or 1:1 |
| Access Control Function: | Essential opening door function, optional control gate/Time management/Anti-submarine/Duress |
| Attendance Function: | Attendance(on/off duty) time quantum |
| Alarm Function: | Yes |
| Power Managemnet Function: | Sleeping Function |
| U disk Download/Upload Function: | Yes |
| Dynamic IP A llocation: | Yes |
| Camera: | Two high definition camera |
| Infrared Lamp: | Two imported ultra bright lamp |
| Unch Card Function: | Yes(optional M1 card or ID card) |
| Displayer: | Color screen4.3inch TFT |
| Debugging: | Touch screen |
| Body Induction: | Yes |
| LED Lights: | Two(Red, Green) |
| Input Parts: | A WG 26/34 input(can be external card reader module |
| Professional access control Function: | Yes |
| Communication Mode: | TCP-IP, WIFI(optional), RS485 |
| U Disk Interface: | Yes(Remark: only support FAT32 file system) |
| Voice Output: | Yes |
| Operating System: | VER3.6.5 |
| Size: | L125 X W112 X H148MM |

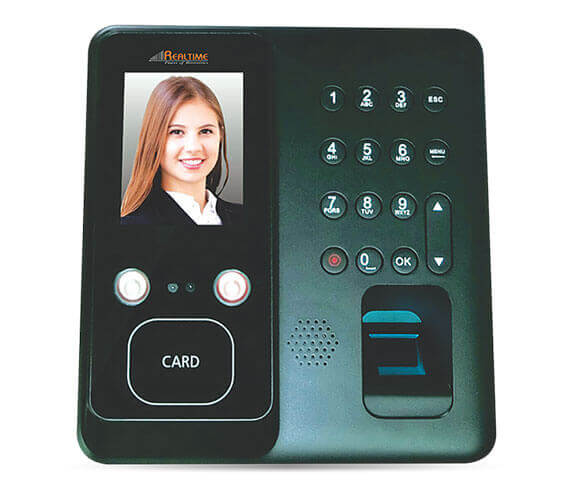

T304F
| Face capacity | 1000 |
| Card capacity | 5000 |
| Fingerprint capacity | 5000 |
| Max Attendance log | 300,000 |
| Management log | 10000 |
| Identify mode | Face, Fingerprint, card, password and combinations |
| Display language | English |
| LED | 1 (Red-Green dual color) |
| Wiegand input | Inside and outside Wiegand(26/34) |
| Communication | TCP/IP, WIFI (optional) |
| U-disk | Supported |
| Audio output | Voice Interface |
| Battery | 3 Hours Battery Backup ( Optional) |
| Working voltage | DC12V � 5%(current : below 1.5A) |
| Working temperature | -100c~ +600c |
| Working humidity(RH) | 20% ~ 80% |
| Self-test function | Supported |
| Power management | Sleep Mode |
| FAR/ FRR | 0.001/1(%) |
| Identify speed | ?1.0 seconds |
| Matching mode | Supports 1:N |
| FAR/ FRR | 0.00001/0.1(%) |
| Identify speed | ?1.0 second (when enrolled 5000 fingerprints) |
| Fingerprint input angle | 3600(any angle) |
| Intelligent adaptation function | Support |
| Matching mode | Support 1:N |

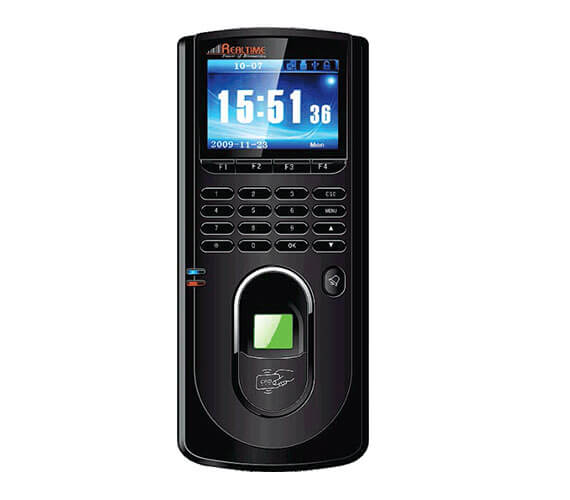

T61
| Fingerprint Users : | 1,000 |
| Card User : | 1,000 |
| Password User : | 1,000 |
| Attendance Records : | 100,000 |
| CPU : | 32bit CPU |
| Fingerprint senor : | Optical sensor |
| Fingerprint spoof detection : | Support |
| Multi-device Related : | Max. 255units |
| Card reader : | Including EM type ID card reader(Option:Mifare reader) |
| Display: | 2.8 inches (Color Display) |
| LED : | Three(Red, Green, Blue) |
| Keyboard : | Touch keypad, 20Keys(with doorbell touch keypad) |
| Communication : | TCP/IP,USB, RS485 |
| Input and output terminals : | Power input (12V; GND) Wiegand input 26/34 Door relay terminal (COM; NO; NC) Alarm relay terminal (COM; NO; NC) Wiegand output 26/34 Exit button input (Exit; GND) Door sensor input Bell terminal (BELL) Anti-pass/reader communication terminal (RS485) |
| USB disk : | Support |
| Additional function : | Tamper Detection |
| Audio output : | Buzzer |
| RTC : | Support |
| Working voltage : | DC 12V ± 10% |
| Working humidity : | (RH)20 % - 80 % |
| Working temperature : | -10°C~ +60°C |
| Module operating mode : | Stand-alone/Master mode, Reader Mode |
| Identification mode : | Fingerprint, card, password and combinations |
| Display language : | Support multi-languages. English,Turkish, Thai, as default |
| Access control : | Directly control of door lock / Indirectly control of door lock via Wiegand access controller. Support 50 access time zones, combination identification, anti-pass back |
| Control multi-doors : | Support |
| Alarm function : | Support tamper, long time door open, illegal door open and intimidate alarm |
| Power management : | Support sleep mode |
| Self-test function : | Support |
| FAR/ FRR : | 0.00001/ 0.1(%) |
| Identify speed : | >1.0 second (when enrolled 2000 fingerprints) |
| Fingerprint input angle : | 360 (any angle) |
| Intelligent adaptation function : | Support |
| Matching mode : | Support 1:N, 1:1 |
T16W
| Fingerprint Users | 3,000 |
| Card User | 3,000 |
| Password User | 3,000 |
| Attendance Records | 100,000 |
| CPU | 32bit CPU |
| Fingerprint senor | Optical sensor |
| Fingerprint spoof detection | Support |
| Multi-device Related | Max. 255units |
| Card reader | Including EM type ID card reader �(Option:�Mifare reader) |
| Display | Monochrome screen 122*32 |
| Communication | TCP/IP,USB, Rs485 |
| USB disk� | Support |
| Additional function | Tamper Detection |
| Audio output | Buzzer |
| Working voltage | DC 12V � 10% |
| Working humidity | (RH)20 % - 80 % |
| Working temperature | -100C~ +600C |
| Self-test function | Support |
| FAR/ FRR | 0.00001/ 0.1(%) |
| Identify speed | ?1.0 second |
| Fingerprint input angle | 3600(any angle) |
| Intelligent adaptation function | Support |
| Matching mode Support | 1:N, 1:1 |

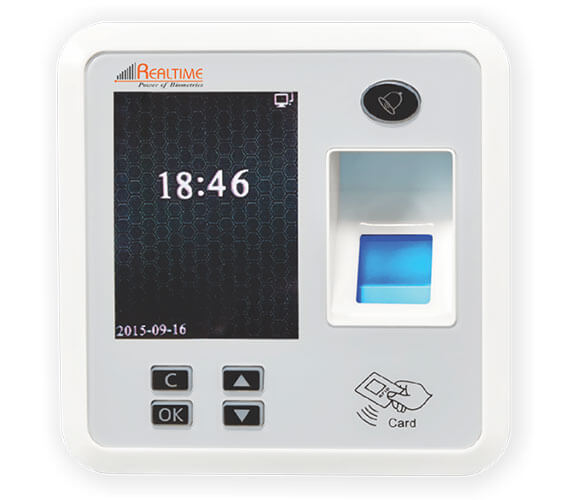

T28
| Fingerprint Users: | 3,000/5,000 |
| Card User : | 3,000/5,000 |
| Password User : | 3,000/5,000 |
| Attendance Records : | 100,000 |
| Fingerprint Verification : | Mode1:1, 1:N |
| Working Mode : | Offline/Online |
| Verification : | Fingerprint, ID Card, Password |
| Combination : | FP+Card, PIN+Card, FP+PIN+Card |
| Verification Time: | >1.0s |
| False Rejection Rate : | <0.01% |
| False Acceptance Rate : | <0.0001% |
| Fingerprint Sensor : | Optical Sensor |
| Screen : | 3 inches (Color Display) |
| Display Language : | English |
| Communication : | RS485, USB Drive/Link, TCP/IP |
| Working Humidity: | 20%-60% |
| Working Temperature : | 0°C-50°C |
| Power Supply : | 12V DC |
| Idle Current : | 400mA |
| Working Current : | 500mA |
| Sound Indicator : | Buzzer, Voice |
| Access Control : | Built-in |
| Access control : | Directly control of door lock / Indirectly control of door lock via Wiegand access controller. Support 50 access time zones, combination identification, anti-pass back |

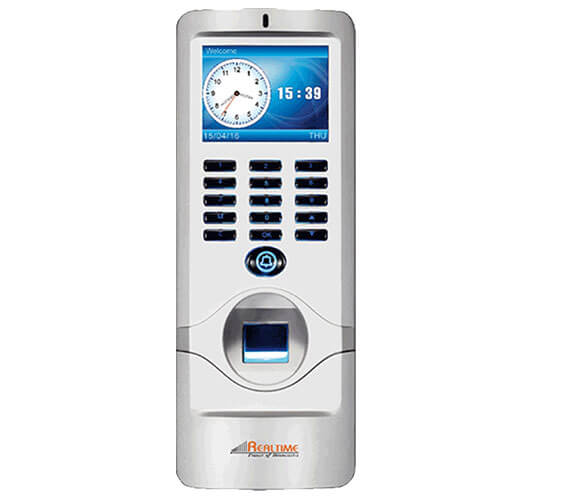

T62
| Fingerprint Users : | 5,000 |
| Card User : | 5,000 |
| Password User : | 5,000 |
| Attendance Records : | 200,000 |
| CPU : | 32bit CPU |
| Fingerprint senor : | 600 dpi Optical sensor |
| Fingerprint spoof detection : | Support |
| Multi-device Related : | Max. 255units |
| Card reader : | Including EM type ID card reader(Option:Mifare reader) |
| Display: | 2.8 inches TFT display |
| LED : | Three(Red, Green, Blue) |
| Keyboard : | Touch keypad, 16Keys(with doorbell touch keypad) |
| Communication : | TCP/IP,USB, RS485 |
| Input and output terminals : | Power input (12V; GND) Wiegand input 26/34 Door relay terminal (COM; NO; NC) Alarm relay terminal (COM; NO; NC) Wiegand output 26/34 Exit button input (Exit; GND) Door sensor input Bell terminal (BELL) Anti-pass/reader communication terminal (RS485) |
| USB disk : | Support |
| Additional function : | Tamper Detection |
| Audio output : | Buzzer |
| RTC : | Support |
| Working voltage : | DC 12V±10% |
| Working humidity (RH) : | 20 % - 80 % |
| Working temperature : | -10°C~+60°C |
| Module operating mode : | Stand-alone/Master mode, Reader Mode |
| Identification mode : | Fingerprint, card, password and combinations |
| Display language : | Support multi-languages. English,Turkish, Thai, as default |
| Access control : | Directly control of door lock / Indirectly control of door lock via Wiegand access controller. Support 50 access time zones, combination identification, anti-pass back |
| Control multi-doors : | Support |
| Alarm function : | Support tamper, long time door open, illegal door open and intimidate alarm |
| Power management : | Support sleep mode |
| Self-test function : | Support |
| FAR/ FRR : | 0.00001/ 0.1(%) |
| Identify speed : | >1.0 second (when enrolled 2000 fingerprints) |
| Fingerprint input angle : | 360 (any angle) |
| Intelligent adaptation function : | Support |
| Matching mode : | Support 1:N, 1:1 |
T60
| Fingerprint Users: | 3,000/5,000 |
| Card User : | 3,000/5,000/10,000 |
| Password User : | 3,000/5,000 |
| Attendance Records : | 100,000/300,000 |
| Fingerprint Verification Mode : | 1:1, 1:N |
| Working Mode: | Offline/Online |
| Verification : | Fingerprint, ID Card, Password |
| Combination : | FP+Card, PIN+Card, FP+PIN+Card |
| Verification Time: | >1.0s |
| False Rejection Rate : | <0.01% |
| False Acceptance Rate : | <0.0001% |
| Finger Print Sensor : | Optical Sensor |
| Screen : | 2.8 inches (Color Display) |
| Display Language: | English |
| Communication : | RS485, USB Drive/Link, TCP/IP |
| Working Humidity: | 20%-60% |
| Working Temperature : | 0°C-50°C |
| Power Supply : | 9V DC |
| Idle Current: | 400mA |
| Working Current : | 500mA |
| Sound Indicator: | Buzzer, Voice |
| Battery Backup : | Optional |
| Access Control: | Built-in |
| Server Connection : | Auto Push Technology |
| Wi-Fi Connectivity : | Optional |
| GPRS: | 2G/ 3G/ 4G (Optional) |

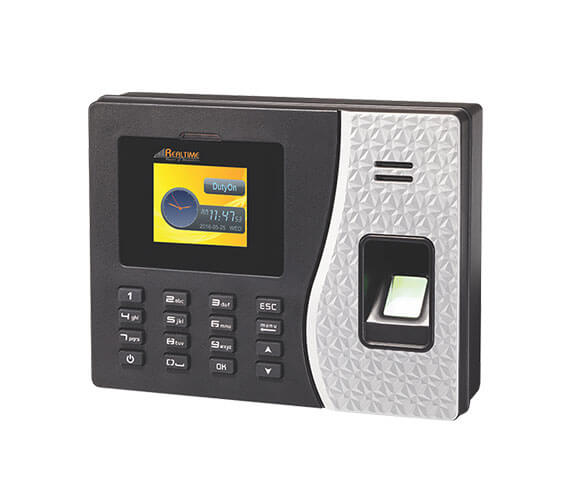

Realtime-T11N
| Fingerprint Users: | 1,000 |
| Card User: | 1,000 |
| Password User: | 1,000 |
| Attendance Records: | 100,000 |
| Fingerprint Verification Mode: | 1:1, 1:N |
| Working Mode: | Offline/Online |
| Verification: | Fingerprint, ID Card, Password |
| Combination: | FP+Card, PIN+Card, FP+PIN+Card |
| Verification Time: | >1.0s |
| False Rejection Rate: | <0.01% |
| False Acceptance Rate: | <0.0001% |
| Finger Print Sensor: | 600dpi Optical |
| Screen: | 2.4 inches (Color Display) |
| Display Language: | English |
| Communication: | USB Drive/Link, TCP/IP |
| Push Technology: | Realtime Data Push To Server |
| Working Humidity: | 20%-60% |
| Working Temperature: | 0°C-50°C |
| Power Supply: | 9V DC |
| Idle Current: | 400mA |
| Working Current: | 500mA |
| Sound Indicator: | Buzzer, Voice |
| Access Control: | Built-in |
| Battery Backup: | Built-in(2-3 Hours) |

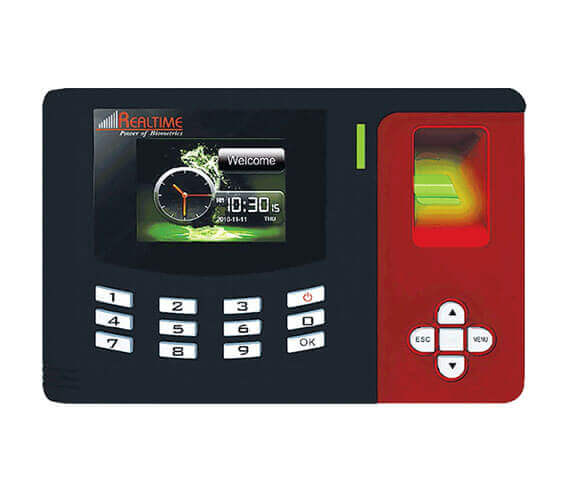

Realtime-T11
| Fingerprint Users: | 1,000 |
| Card User : | 1,000 |
| Password User : | 1,000 |
| Attendance Records : | 100,000 |
| Fingerprint Verification Mode : | 1:1, 1:N |
| Working Mode: | Offline/Online |
| Verification : | Fingerprint, ID Card, Password |
| Combination : | FP+Card, PIN+Card, FP+PIN+Card |
| Verification Time: | >1.0s |
| False Rejection Rate : | <0.01% |
| False Acceptance Rate : | <0.0001% |
| Finger Print Sensor : | 600 dpi Optical |
| Screen : | 2.8 inches (Color Display) |
| Display Language: | English |
| Communication : | USB Drive/Link, TCP/IP |
| Push Technology : | Realtime Data Push to Server |
| Working Humidity: | 20%-60% |
| Working Temperature : | 0°C-50°C |
| Power Supply : | 9V DC |
| Idle Current: | 400mA |
| Working Current : | 500mA |
| Sound Indicator: | Buzzer, Voice |
| Battery Backup : | Optional |

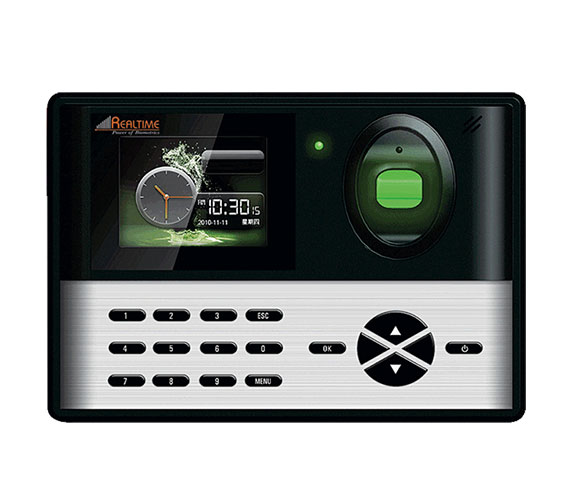

Realtime-T14
| Fingerprint Users: | 1,000 |
| Card User : | 1,000 |
| Password User : | 1,000 |
| Attendance Records : | 100,000 |
| Fingerprint Verification Mode : | 1:1, 1:N |
| Working Mode: | Offline/Online |
| Verification : | Fingerprint, ID Card, Password |
| Combination : | FP+Card, PIN+Card, FP+PIN+Card |
| Verification Time: | >1.0s |
| False Rejection Rate : | <0.01% |
| False Acceptance Rate : | <0.0001% |
| Finger Print Sensor : | Optical Sensor |
| Screen : | 2.8 inches (Color Display) |
| Display Language: | English |
| Communication : | USB Drive/Link, TCP/IP |
| Push Technology : | Realtime Data Push to Server |
| Working Humidity: | 20%-60% |
| Working Temperature : | 0°C-50°C |
| Power Supply : | 9V DC |
| Idle Current: | 400mA |
| Working Current : | 500mA |
| Sound Indicator: | Buzzer, Voice |
| Battery Backup : | Optional |
Canteen Management
| Authentication | Finger, RFID Card(125 KHz) |
| Fingerprint Sensor | Optical- Suprema Inc. Korea |
| Fingerprint Capacity | 9,500 |
| Template Standard | ISO 19794-2 |
| Resolution & Image Size | 500 dpi & 272x320(pixel) |
| Fingerprint Sensor Area | 16 x 19 mm |
| Fingerprint Verification | 1:1, 1:N |
| Fingerprint Recognition | <1 second |
-
» Software Canteen Management Software
» Daily Usage Reports - Employee, date, item and guest wise
» Monthly Summary Reports, Consumption Reports
Booster Shop India Canteen Management System reduces manpower for coupon management, reduces wastage of food, reconciliation of used material & consumed material.

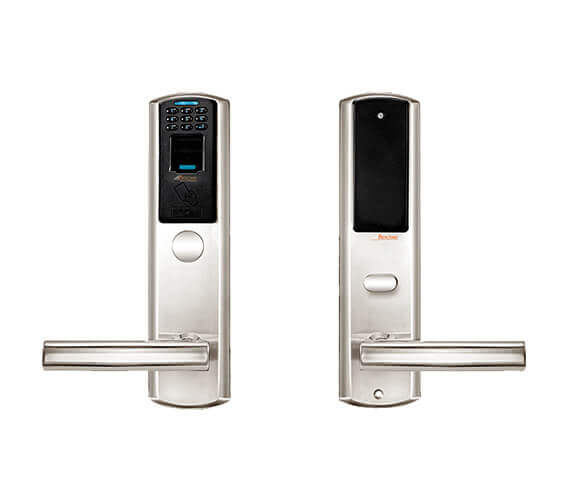

FL-600
| Fingerprint Sensor: | Option IR Auto Wake Up Sensor |
| Front Plate: | 74x285x30mm ( Stainless steel 304 materials) |
| Black Plate: | 74x285x25mm ( Stainless steel 304 materials) |
| Mortise: | Center distance: 72mm, Backset: 55mm |
| Applicated door thickness: | 35~55mm |
| Battery: | 4 AA battery (8,000~10,000 times) |
| Operating Temperature: | -35°C--85°C |
| Usability test: | Mortise (30.000 times) Handle(50,000 times) Stainless steel 304 materials |
| User Capacity: | 100 fingerprints/100 cards/100 passwords |
| Card: | RFID Card(125KHz) |
| Identification: | Fingerprint/card/password |
| Lock body: | Eroupe/ USA lock Body ( Stainless steel 304 materials) |
| Communication: | USB Download the unlock records to PC |
| Fuzzy password: | It means the password is not steady (For example: If you set password 1234 , you could use 9881234,12348909,883123478 and so on to open the door |
| Fingerprint Capacity: | 100 |
| Log Capacity: | 30,000 |
| Identification Methods: | Fingerprint, RFID Card ,Password ,Key |
| Data Communication: | USB 2.0 Download |
| Working Temperature: | --25°C---55°C |
| Power Supply/Power Source: | 4AA battery |
| Sensor Type: | CMOS fingerprint sensor |
| Humidity Range: | 0 ~ 40 |
| Recognition Speed: | <0.5 sec |
| FRR Rate: | 0.01% |
| FAR Rate: | 0.0001% |
| Supply Voltage: | 2.5 to 3.3V |
| Supply Current: | 7mA at 3.3V, 4mHz, and room temperature |
| Quiescent/ Dynamic/ Peak Current: | 400mA*/ 600mA*/ 800mA* |
| Wear-and-tear: | more than 10 million times |
| ESD Protection: | Approx. 30kV IEC61000-4-2 |

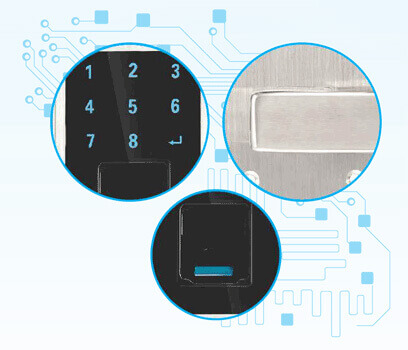

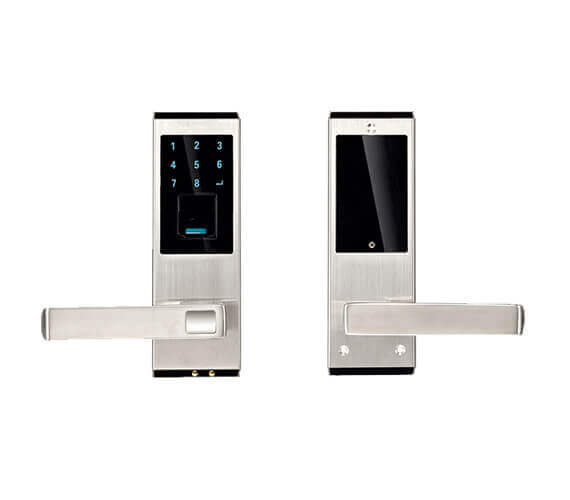

FL-900
| Fingerprint Sensor: | Option IR Auto Wake Up Sensor |
| Front Plate: | 68x198x30mm ( Stainless steel 304 materials) |
| Black Plate: | 68x198x25mm ( Stainless steel 304 materials) |
| Mortise: | Center distance: 70mm, Backset: 55mm |
| Applicated door thickness: | 35~55mm |
| Battery: | 4 AA battery (8,000~10,000 times) |
| Operating Temperature: | -35°C--85°C |
| Usability test: | Mortise (30.000 times) Handle(50,000 times) Stainless steel 304 materials |
| User Capacity: | 100 fingerprints/100 passwords |
| Identification: | Fingerprint/key/password |
| Lock body: | USA Small lock Body ( Stainless steel 304 materials) |
| Communication: | USB Download the unlock records to PC |
| Fingerprint Capacity: | 100 |
| Log Capacity: | 30,000 |
| Identification Methods: | Fingerprint,Password ,Key |
| Data Communication: | USB 2.0 Download |
| Working Temperature: | --25°C---55°C |
| Power Supply/Power Source: | 4AA battery |
| Sensor Type: | CMOS fingerprint sensor |
| Humidity Range: | 0 ~ 40 |
| Recognition Speed: | <0.5 sec |
| FRR Rate: | 0.01% |
| FAR Rate: | 0.0001% |
| Supply Voltage: | 2.5 to 3.3V |
| Supply Current: | 7mA at 3.3V, 4mHz, and room temperature |
| Quiescent/ Dynamic/ Peak Current: | 400mA*/ 600mA*/ 800mA* |
| Wear-and-tear: | more than 10 million times |
| ESD Protection: | Approx. 30kV IEC61000-4-2 |

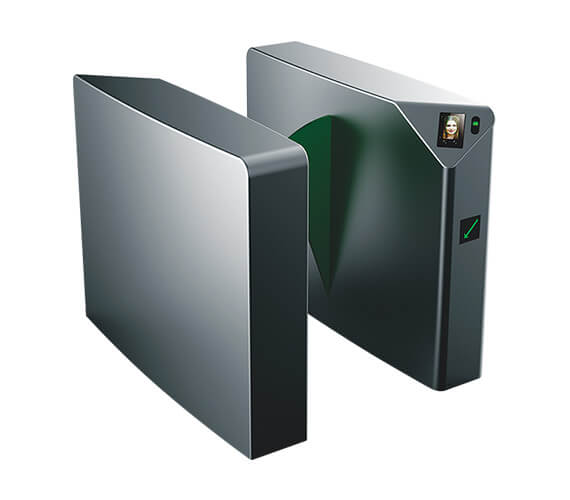

T6301
| Structure: | 304 stainless steel panel punching forming |
| Dimension of appearance: | Length 1400x width 300x height 1100 (mm) |
| Material: | 304 stainless steel/spraying plastics |
| Passage width: | less than 300 MM |
| Access mode: | Single/ bi-direction |
| Recognition mode: | Face/ Fingerprint/ IC card / ID card |
| Capacity of face register: | 3000 |
| Capacity of fingerprint register: | 5000 (range from 5000 to 100,000 pieces) |
| Camera: | Two high definition cameras(real-time transport picture) |
| Infrared light: | Two exported super bright infrared light |
| Display: | 4.3 inch high definition TFT capacitance touchable bright color screen |
| Communication interface: | RS485, TCP/IP, P2P, Web |
| Mode of access control: | Professional pattern, wiegand and output, anti - sneak, anti-trailing |
| Input interface: | Switching signal (COM interface is ground) |
| Drive Motor: | Continuous current motor 30W/24V |
| Operation time of swing door: | About 2s. |
| Working environment: | Indoor and outdoor (canopy is better) |
| Power: | AC 220V / AC 110 V (optional) |
| Temperature of working environment: | -15°C - 75°C |
| Relative humidity: | Less than 95%, non-condenation. |
T6101
| Structure: | 304 stainless steel panel punching forming |
| Dimension of appearance: | Length 1400x width 300x height 1100 (mm) |
| Material: | 304 stainless steel/spraying plastics |
| Passage width: | less than 300 MM |
| Access mode: | Single/ bi-direction |
| Recognition mode: | Face/ Fingerprint/ IC card / ID card |
| Capacity of face register: | 3000 |
| Capacity of fingerprint register: | 5000 (range from 5000 to 100,000 pieces) |
| Camera: | Two high definition cameras(real-time transport picture) |
| Infrared light: | Two exported super bright infrared light |
| Display: | 4.3 inch high definition TFT capacitance touchable bright color screen |
| Communication interface: | RS485, TCP/IP, P2P, Web |
| Mode of access control: | Professional pattern, wiegand and output, anti - sneak, anti-trailing |
| Input interface: | Switching signal (COM interface is ground) |
| Drive Motor: | Continuous current motor 30W/24V |
| Operation time of swing door: | About 2s. |
| Working environment: | Indoor and outdoor (canopy is better) |
| Power: | AC 220V / AC 110 V (optional) |
| Temperature of working environment: | -15°C - 75°C |
| Relative humidity: | Less than 95%, non-condenation. |

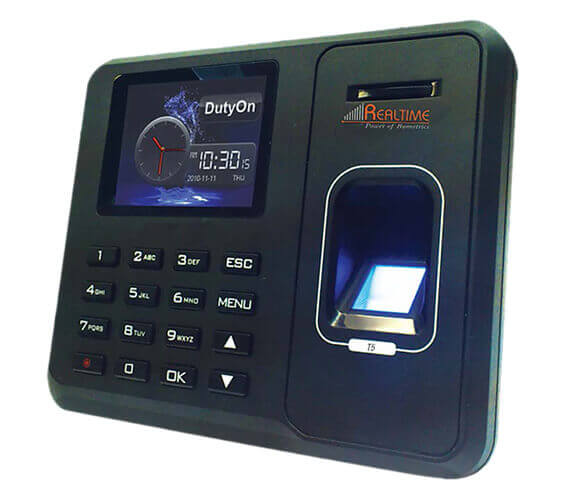

T5
Fingerprint Users | 1,000 |
| Card User | 1,000 |
| Password User� | 1,000 |
| Attendance Records | 100,000 |
| Fingerprint Verification Mode | 1:1, 1:N |
| Working Mode | Offline |
| Verification | Fingerprint, ID Card, Password |
| Combination | FP+Card, PIN+Card, FP+PIN+Card |
| Verification Time� | >1.0s |
| False Rejection Rate | < 0.01% |
| False Acceptance Rate | < 0.0001% |
| Finger Print Sensor | Optical Sensor |
| Screen | 2.8 inches (Color Display) |
| Display Language | English |
| Communication | USB Disk |
| Working Humidity | 20%-60% |
| Working Temperature | 00C-500C |
| Power Supply | 5V DC |
| Idle Current | 400mA |
| Working Current | 500mA |
| Sound Indicator | Buzzer, Voice |
Eco S C101
| Fingerprint Users: | 1,000 |
| Card User: | 1,000 |
| Password User: | 1,000 |
| Attendance Records: | 100,000 |
| Display: | 2.4 inch |
| Operation : | Offline |
| Power Supply: | DC5V |
| Authentication Methods: | Fingerprint, RF Card, Password |
| Fingerprint Verification Mode: | 1:1, 1:N |
| Fingerprint Sensor: | Optical Sensor |
| Verification Speed: | ≤ 0.6s |
| False Rejection Rate: | <0.01% |
| False Acceptance Rate : | <0.0001% |
| Display Language: | English |
| Attendance Management: | Yes (Built-in Automatic Reporting System) |
| Interface : | USB Disk |
| Attendance Record Check: | Press OK Button for Checking |
| Reporting : | Excel Report Output |
| Operating Temperature: | -10 C - +60 C |
Eco S C101
| Fingerprint Users: | 1,000 |
| Card User: | 1,000 |
| Password User: | 1,000 |
| Attendance Records: | 100,000 |
| Display: | 2.4 inch |
| Operation : | Offline |
| Power Supply: | DC5V |
| Authentication Methods: | Fingerprint, RF Card, Password |
| Fingerprint Verification Mode: | 1:1, 1:N |
| Fingerprint Sensor: | Optical Sensor |
| Verification Speed: | ≤ 0.6s |
| False Rejection Rate: | <0.01% |
| False Acceptance Rate : | <0.0001% |
| Display Language: | English |
| Attendance Management: | Yes (Built-in Automatic Reporting System) |
| Interface : | USB Disk |
| Attendance Record Check: | Press OK Button for Checking |
| Reporting : | Excel Report Output |
| Operating Temperature: | -10 C - +60 C |
Eco S C110t
| Fingerprint Users: | 1,000 |
| Card User : | 1,000 |
| Password User : | 1,000 |
| Attendance Records : | 100,000 |
| Fingerprint Verification Mode : | 1:1, 1:N |
| Working Mode: | Offline |
| Verification : | Fingerprint, ID Card, Password |
| Combination : | FP+Card, PIN+Card, FP+PIN+Card |
| Verification Time: | >1.0s |
| False Rejection Rate : | <0.01% |
| False Acceptance Rate : | <0.0001% |
| Finger Print Sensor : | Optical Sensor |
| Screen : | 2.8 inches (Color Display) |
| Display Language: | English |
| Communication : | RS485, USB Drive/Link, TCP/IP |
| Working Humidity: | 20%-60% |
| Working Temperature : | 0° C-50° C |
| Power Supply : | 9V DC |
| Idle Current: | 400mA |
| Working Current : | 500mA |
| Sound Indicator: | Buzzer, Voice |
Eco S C121-ta
| Fingerprint Users: | 1,000 |
| Card User : | 1,000 |
| Password User : | 1,000 |
| Attendance Records : | 100,000 |
| Fingerprint Verification Mode : | 1:1, 1:N |
| Working Mode: | Offline |
| Verification : | Fingerprint, ID Card, Password |
| Combination : | FP+Card, PIN+Card, FP+PIN+Card |
| Verification Time: | >1.0s |
| False Rejection Rate : | <0.01% |
| False Acceptance Rate : | <0.0001% |
| Finger Print Sensor : | Optical Sensor |
| Screen : | 2.4 inches (Color Display) |
| Display Language: | English |
| Communication : | RS485, USB Drive/Link, TCP/IP |
| Working Humidity: | 20%-60% |
| Working Temperature : | 0°C-50°C |
| Power Supply : | 9V DC |
| Idle Current: | 400mA |
| Working Current : | 500mA |
| Sound Indicator: | Buzzer, Voice |
| Access Control : | Built-in |
| Battery Backup : | Built-in (2-3 Hours) |
