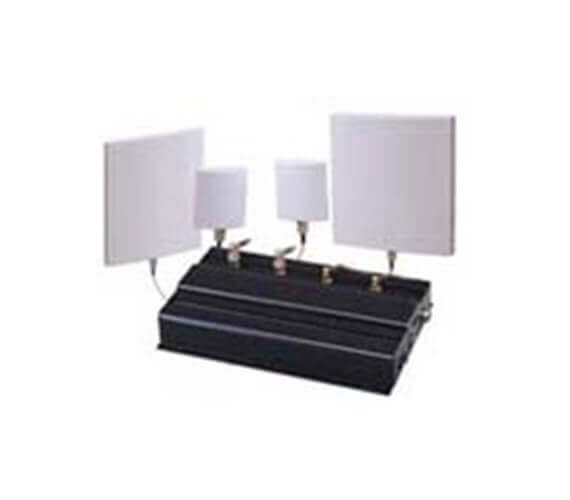

100 Mtr Jammer

  • TX frequency CDMA 851/869~ 894 MHz
  • TX frequency GSM 925/936~ 965 MHz
  • TX frequency PHS 1800~ 1990 MHz
  • TX frequency 3G 2110~ 2170 MHz
  • Total output power :32w (800:8w, 900:8w,1800~1950:8w, 2100~2200:8w
  • Cover interface
  • RF output indicating of LED display
  • Four fans of convection and add metal filter
  • TNC antenna connector
  • IR remote control (8-10M)
  • Automatic power switching power supply:50/60 hz/AC 100~240V transmitting to DC 24v
  • Dimension: 345mm(L)*187(W)*58mm(H)
  • WEIGHT:2.5 KG
  • Jamming range: radius 50~100M up [ the signal must<-80db in the location]
  • Take the breaker out of the packing box
  • Plug in the antenna according to the frequencies
  • Plug in the AC power and then plug in DC jack to the jammer
  • When the LED is on,the jammer is activated.

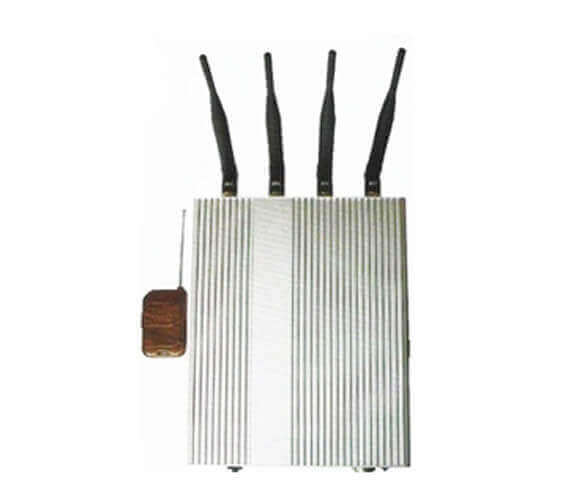

High Power 24x7 Working Jammer

Location you can install it: -
Hospitals, theaters, recording studios, banks, contact tendering room, churches, conference rooms, classrooms, security services, military units, secret services, news conference rooms, libraries, museums, prisons, court room, customs, auditoriums, cinema halls, etc.

Jamming distance (coverage)

JAM 40-50: For GSM cellular systems with CDMA module, up to 40-50 meters radius coverage.

Remarks:

The above jamming distances are for reference only; actual jamming distance will be varied depending on the type and location of cellular system.

Available country & area Europe, Asia, Middle East, Africa, etc.
Frequency band CDMA 800, GSM 900/1800/1900
Effective Range Up to 40-50 meters radius, depending on the strength and type of cellular system
Power 10w
Power Source AC 220V 50Hz or DC 5V switching power adaptor
Antenna External
Size L 210 x W 50 x T 170 mm
Packing Remote, Adaptor, 4 Antenna

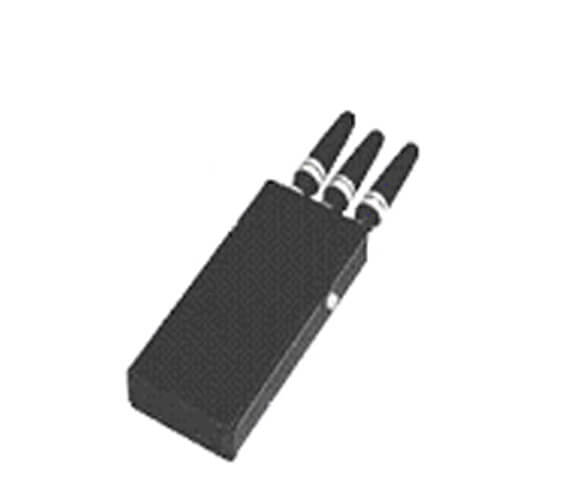

Palm Size Portable Jammer

Keeping customer satisfaction as our topmost priority since our establishment, we have developed ourselves among the reckoned suppliers of Palm Size Portable Jammer. These portable jammers appear like small cell phones and are ideal for blocking the normal transmission of mobile frequency flow within a defined area. Palm Size Portable Jammer is functional in blocking all the wireless signals and is obtained by us from the certified vendors of the market.

Features
  • External omnidirectional antennas
  • 100-150 mW of output power
  • LI Battery
Palm Size Portable Jammer
  • TX frequency :- 869-960 MHz
  • TX frequency :- 1805-1920 MHz
  • TX frequency :- 2110-2170 MHz
  • Output power :- 100-150 mW
  • Output power :- 100-150 mW
  • Output power :- 100-150 mW
Battery LI Battery DC 5v / 1500mA / H
Antennas External Omnidirectional
Continue using time 2-3 Hours
Jamming range 0.5-12 M The jamming redius still depend on the strength signal in given area
Dimension 95 x 45 x 18 M
Weight 150 gm
